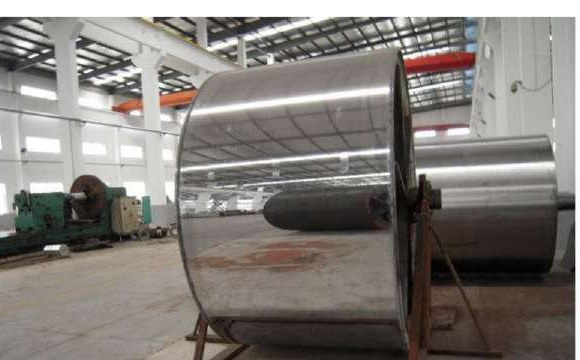

Yankee Cylinder & Welded-plate Dryer Cylinder
The Yankee cylinder is the single large drying cylinder of a tissue or MG machine. Allwin makes cast HT300 Yankees and lighter welded-plate versions, machining and grinding shells in-house and shipping material certificates and inspection reports with every cylinder.
Built to drawing or sample · Export packed · Ships from Qingdao
Overview
Allwin supplies cast Yankee cylinders and ASME welded-plate dryer cylinders for tissue and machine-glazed production. Shells are machined and ground in-house, with material certificates and inspection reports supplied with delivery. Welded-plate construction gives a lighter shell with faster steam response for tissue machines.
Construction and features
- Cast HT300 shell, machined and ground in-house
- Welded-plate (ASME) construction for tissue grades
- Max diameter 3,660 mm, face length up to 5,800 mm
- Material certificate and inspection report with delivery
Where it is used
Specifications
| Shell material | HT300 |
|---|---|
| Max diameter | 3,660 mm |
| Face length (Yankee) | 5,800 mm |
| Face length (welded-plate) | 5,400 mm |
| Machine speed (Yankee) | 1,600 m/min |
| Machine speed (welded-plate) | 1,200 m/min |
| Steam pressure (Yankee) | 1.7 MPa |
| Steam pressure (welded-plate) | 0.7 MPa |
| Surface roughness | Ra 0.4 |
Send an enquiry
Yankee Cylinder / Welded-plate Dryer Cylinder — common questions
Cast or welded-plate Yankee cylinder — which one fits my machine?
Cast HT300 is the proven choice for higher steam pressures and longlife on conventional machines. A welded-plate shell is lighter and responds faster to steam changes, which suits tissue machines with frequent grade changes; it is supplied with ASME compliance.
What documentation comes with the cylinder?
Material certificate, inspection report and dynamic balance records are provided together with delivery, so the cylinder can be registered with your notified body and insurer.
