Multi-zone Controllable Crown Calender Machine
A multi-zone crown calender controls the roll crown zone by zone through brass zone packs, keeping nip load even across the whole face width. The Allwin package covers the machine, the crown roll, the hydraulic station and control cabinet, the thermal oil heating system and the operating panels.
Built to drawing or sample · Export packed · Ships from Qingdao
Overview

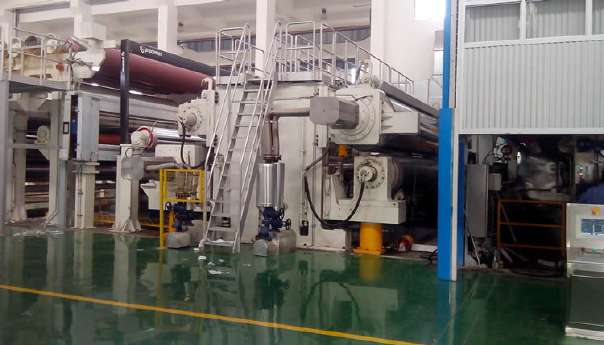

The multi-zone controllable crown calender adjusts the roll crown zone by zone, keeping the nip load uniform across the full face width. Allwin supplies the complete package: calender machine in single or double press nip configuration, multi-zone crown calender roll, hydraulic control cabinet, hydraulic station, thermo conductive oil heating system and dedicated operating panels. Conventional one-nip and two-nip calenders and super calender machines are also available.
Construction and features
- Zone-by-zone crown control for uniform nip load
- Single or double press nip configurations
- Complete package: hydraulic station, control cabinet, thermal oil heating, operating panels
- Super calender and conventional calender machines also available
Where it is used
Specifications
| Nip configurations | single press nip / double press nip |
|---|---|

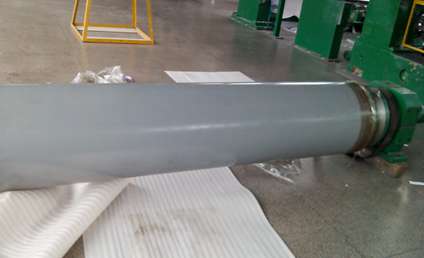

| Crown control | multi-zone controllable crown calender roll |

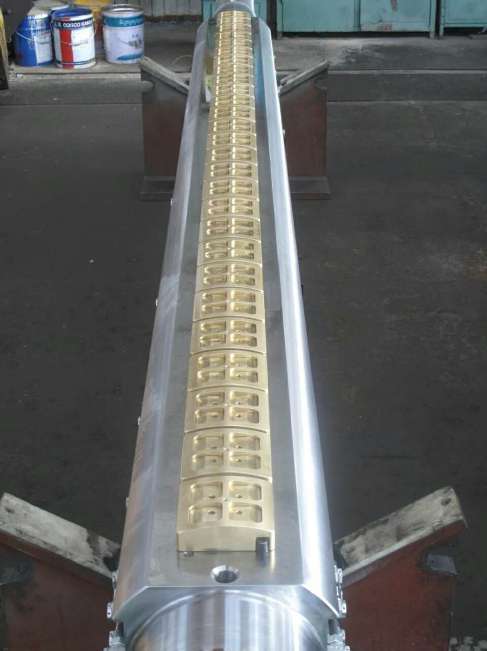

| Zone elements | brass zone packs |

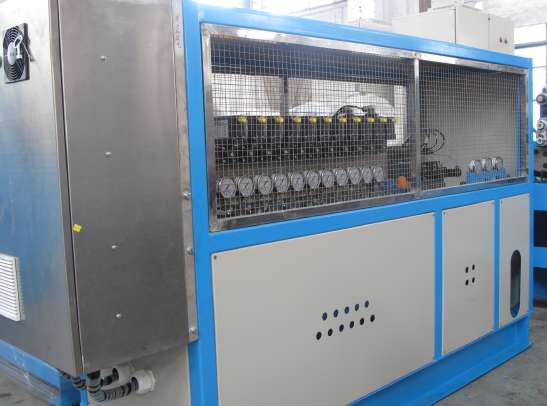

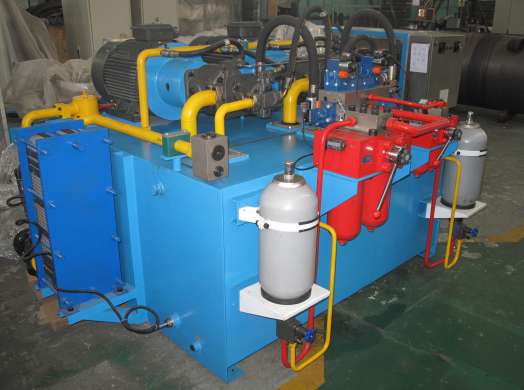

| Hydraulic supply | hydraulic station + multi-zone control cabinet |

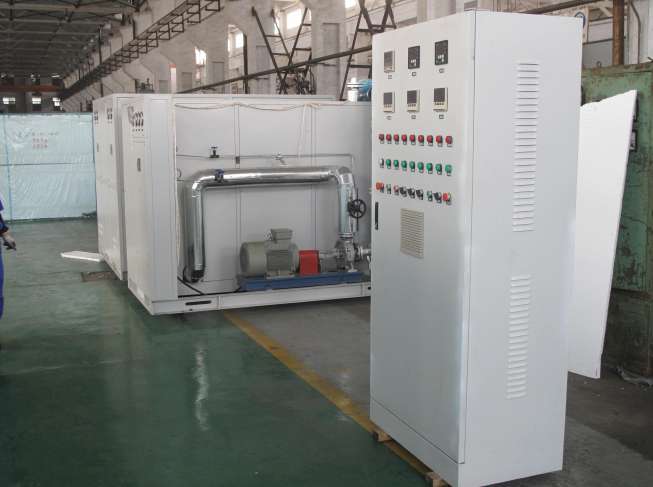

| Heating | thermo conductive oil heating system |

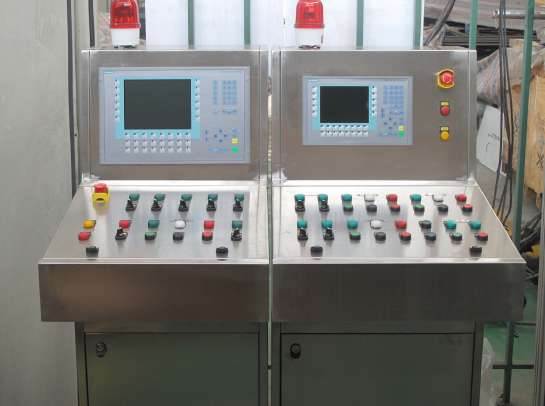

| Control | dedicated operating panels |
Send an enquiry
Multi-zone Controllable Crown Calender Machine — common questions
What does multi-zone crown control change compared with a fixed crown roll?
A fixed crown is correct for one line load and one temperature. A multi-zone roll re-shapes the crown as grades, speeds and coats change, so caliper and gloss stay uniform edge to edge without regrinding the roll.
Is the thermal oil heating system included?
Yes. The package includes the thermo conductive oil heating system, the hydraulic station, the multi-zone hydraulic control cabinet and the operating panels, so the calender arrives as one integrated unit.
